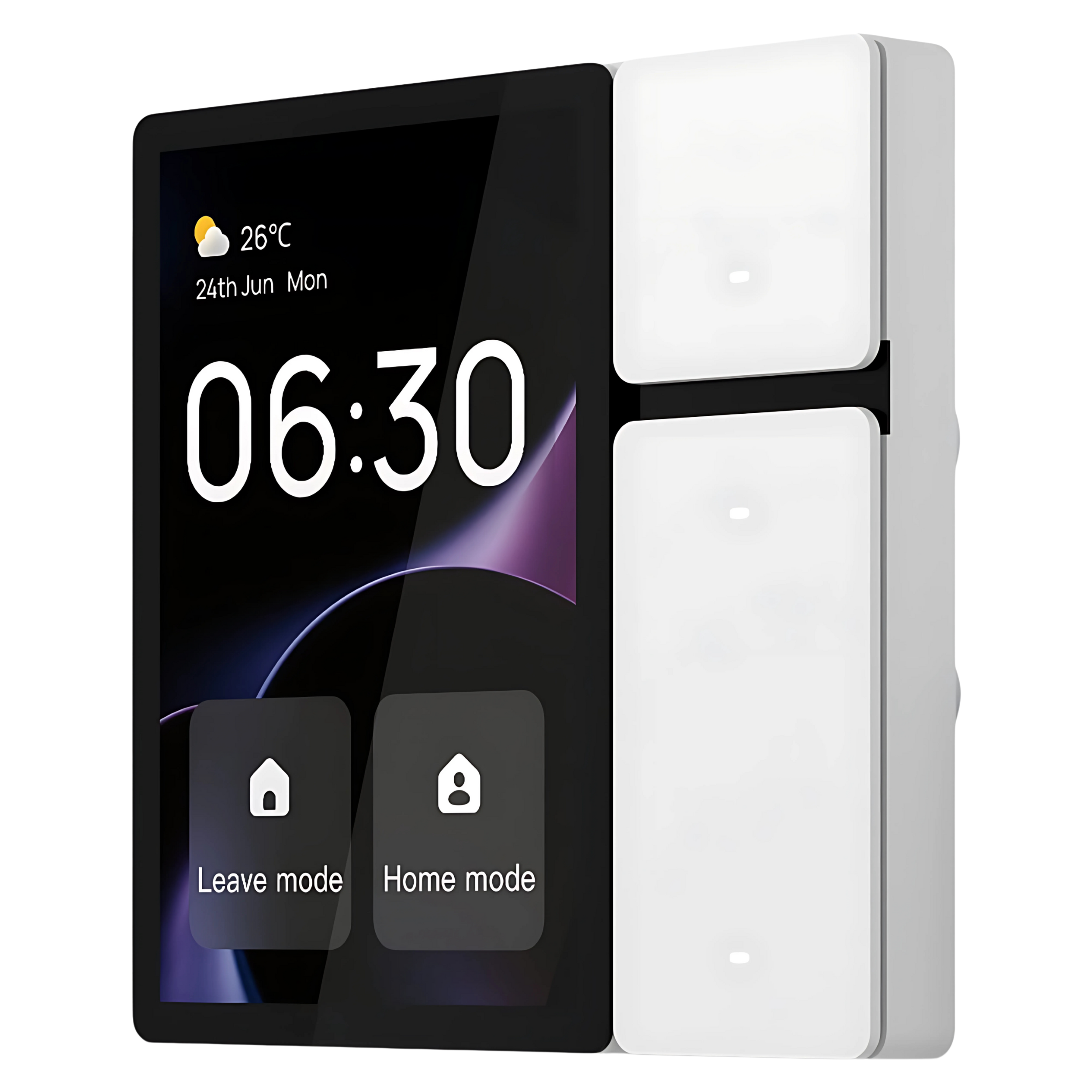

MiniControl 3
The Magnito MiniControl 3 is a versatile and compact smart control panel featuring a 3-inch screen, three physical buttons, three relay channels, and infrared remote control. Effortlessly manage your devices, adjust settings, and control your space with a combination of touch and physical buttons, all in a sleek, space-saving design.
Smart Light Dimer
Smart Light Dimer
Smart Light Dimer
Description
Features

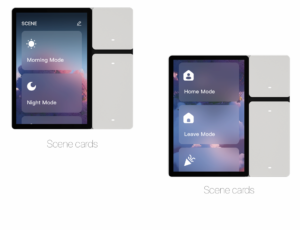

- Scene Control
The app allows you to manage and activate scenes, switch between lighting scenes, and view scenes by room. You can hide or restore scenes without deleting them and customize the display order by rearranging scene cards.
- Quick control
The “Quick Control” page displays widgets for easy device management, allowing you to control device functions at a glance. You can access advanced controls by clicking an arrow, and customize the widgets by adding, deleting, or rearranging them. The widgets provide direct control, improving interaction efficiency without needing to navigate to advanced control pages.

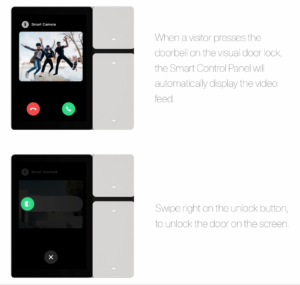

- View Camera & Unlock on Screen
The “Family Call” page displays devices with video streaming capabilities, such as smart cameras, visual doorbells, and visual door locks. You can view live footage from cameras, answer calls when the doorbell is pressed, and unlock the door directly from the screen.

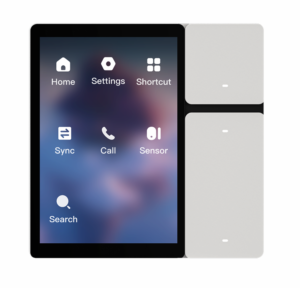

- Pull-down Page
The “Pull-down Page” provides quick access to several features: return to the home page, enter settings, edit shortcuts, sync device and scene lists, view video devices like cameras and doorbells, check sensor data, and search for Bluetooth Sigmesh sub-devices for network configuration.

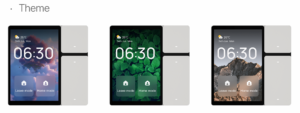

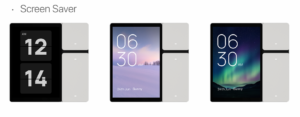

- Theme and Screen Saver
The Smart Control Panel Mini supports multiple sets of themes and screen savers.

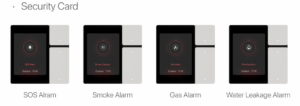

- Security Alarm
The Smart Control Panel Mini supports security alarm functionality. When devices such as gas detectors, smoke detectors, water leakage sensors, SOS emergency buttons, etc., are triggered at home, the control panel will display a security alarm card to alert users.

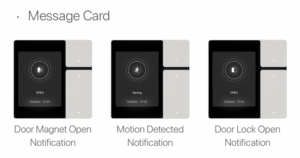

- Message Notifications
Message cards will pop up on the control panel when there are changes in the status of devices such as door locks, door magnets, PIR motion sensors, etc., informing users of the changes in sensor and other device statuses. If users prefer not to be disturbed, they can also disable message card notifications.
Product Specifications
Product Name: Smart Control Panel Mini
Input: 100-240V～；50/60Hz
Wireless Protocol: Wi-Fi、IR
Maximum total load: 600W
Maximum load per channel: 200W
Operating Temperature: 0°C～40°C Operating Humidity: 5% to 90% RH (Non-condensing)
Size: 86*86*11.5mm (excluding base) 86*86*35.5mm (including base)
Net Weight: 153g
